This is a series of antenna-tuning circuit or circuits for transmitting antenna placement SW 3-30 MHz wave / short wave 3-30 Mhz. If the placement is just right then the maximum energy from the transmitter will send out all the antenna through sehinnga nothing is wasted. To get a clear picture of the circuit is click on the picture below.

Rangkaian Penala AntenaSkema Rangkaian Penala Antena

This transmacth circuit function is to locate an appropriate impedance between the transmitting antenna that occurred in the ratio 1:1 SWR reading it, because in this placement is associated with a series of SWR / standing wave ratio. Thus the purpose of 1:1 is the one that came out was also one emitted by the antenna instead of just half saja.Impedansinya generally is 50 Ohm. With this circuit the maximum power that can pass this circuit is 50 Watt.

About SWR meter

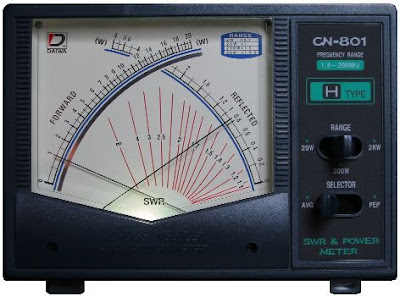

The SWR meter or VSWR (voltage standing wave ratio) meter measures the standing wave ratio in a transmission line. This is an item of radio equipment used to check the quality of the match between the antenna and the transmission line.

SWR Meter Installation SWR Meter Installation

SWR Meter
SWR Meter Pic

The VSWR meter should be connected in the line as close as possible to the antenna. This is because all practical transmission lines have a certain amount of loss, causing the reflected power to be attenuated as it travels back along the cable, and producing an artificially low VSWR reading on the meter.
